Ziyituod PCIe SATA Card, 4 Port with 4 SATA Cable


Model: 3034A

Chipset:Asmedia1062

Hardware Interface: PCIE X1

Supported Operating Systems: Windows XP / 7 / 8 / 10(32/64 bit) /VISTA / MAC / NAS / Linux

:

:

:

  • Product Description
  • Standard Setting Guide
  • Customer FAQ
  • Driver Download
  • Video

You could make the system to boot from this SATA controller but non RAID.If your motherboard has RAID function, you could make a RAID with this SATA Card.

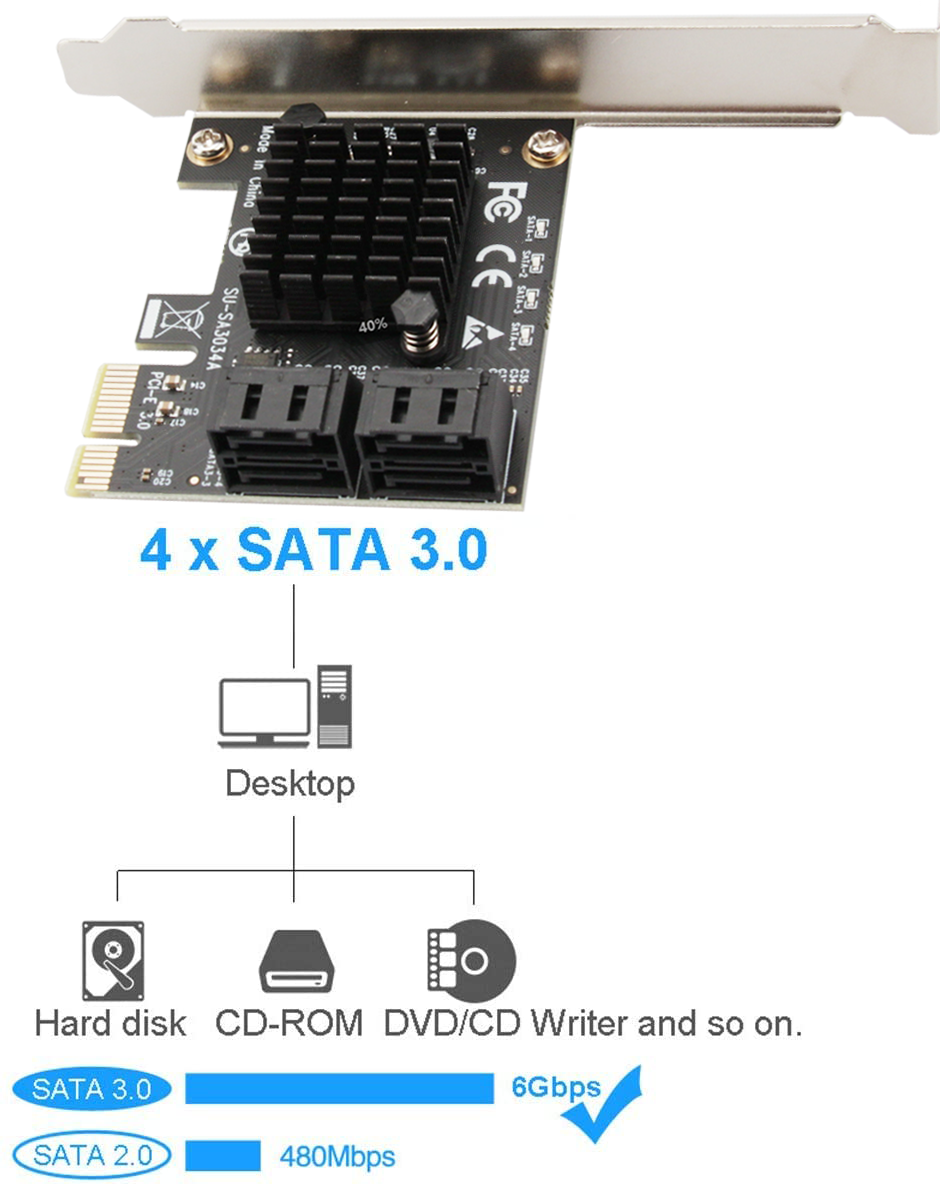

4 Ports Adapter Card --- You could add 4 6Gb/s SATA 3.0 devices to your computer with this PCIe SATA card.

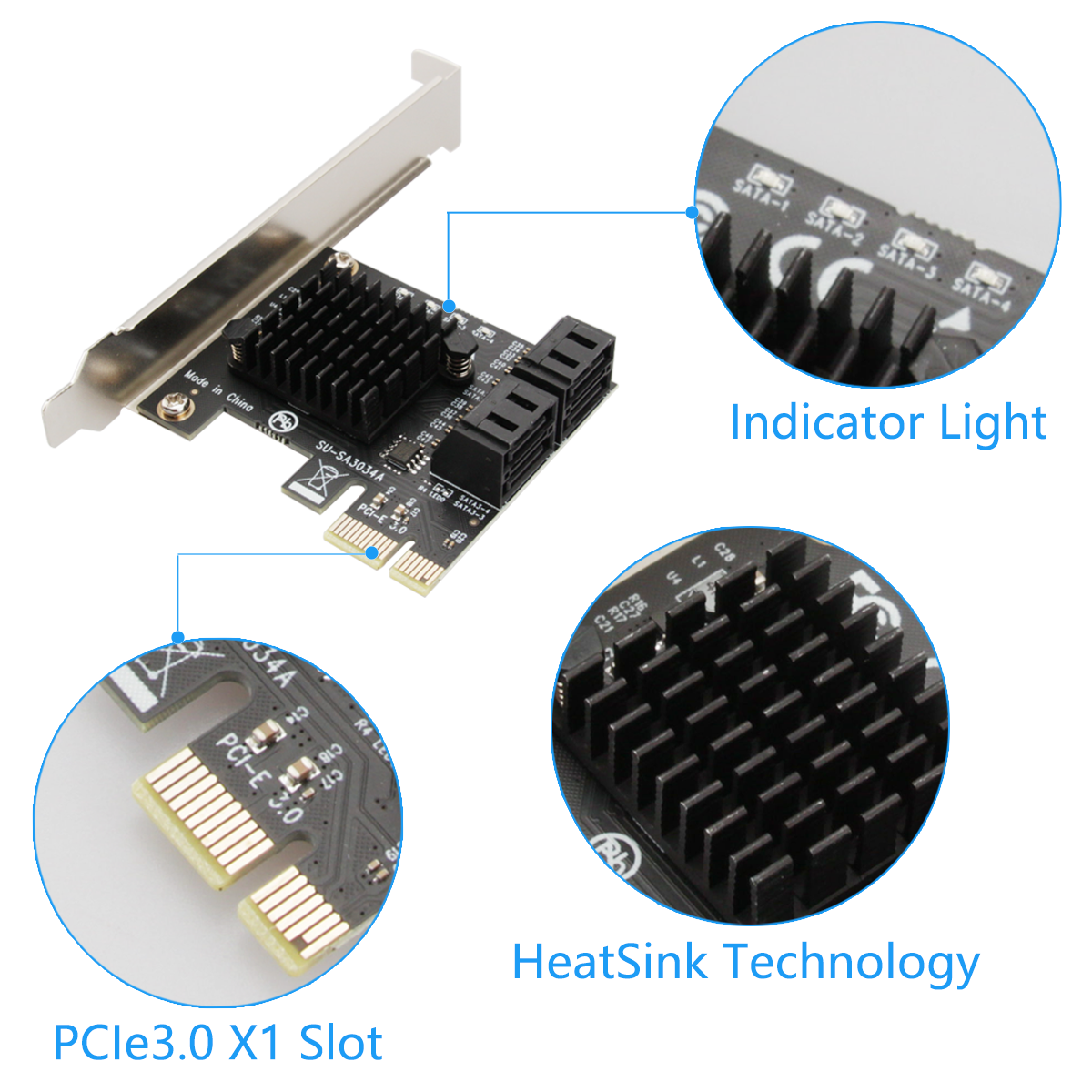

Chipset --- With using The Asmedia1062 chip,more stable and compatible.Port Multiplier FIS-based and Command-based switching supported.

For All PCs --- with a low profile Bracket and 4 SATA Cable,compatible with 99% size chassis on the market.

System Support --- Connect 4 large capacity storage devices at the same time. Compatible with Windows XP /2003 / 7 / 8 / 10 / MAC / NAS / Linux OS.

Ziyituod SATA Card

Ziyituod---Make Connection Easy and Effective

  • Color: 4-Port SATA 3.0 Card(3034A)

PCIe X1 to 4 SATA 3.0 ports controller card offers a simple connection between a host computer and SATA 3.0 devices(SATA hard drive or SATA device), which allows 4 SATA devices at the speed up to 6Gbps.

Features

  • Chipset: Asmedia1062
  • Support 4 SATA 3.0 6Gbps devices
  • Compliant with PCI-Express Specification v2.0 ,v3.0, backwards compatible with PCIe1.0
  • Compliant with Serial ATA Specification 3.0, backwards compliant with Serial ATA2.0,Serial ATA1.0
  • Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
  • Supports Port Multiplier FIS-based and Command-based switching
  • Plug and play, supports Hot Plug and Hot Swap

Installation Notes

  • No need to install drivers
  • If it is not recognized, please replace a PCIe slot, it may also be a compatibility issue.

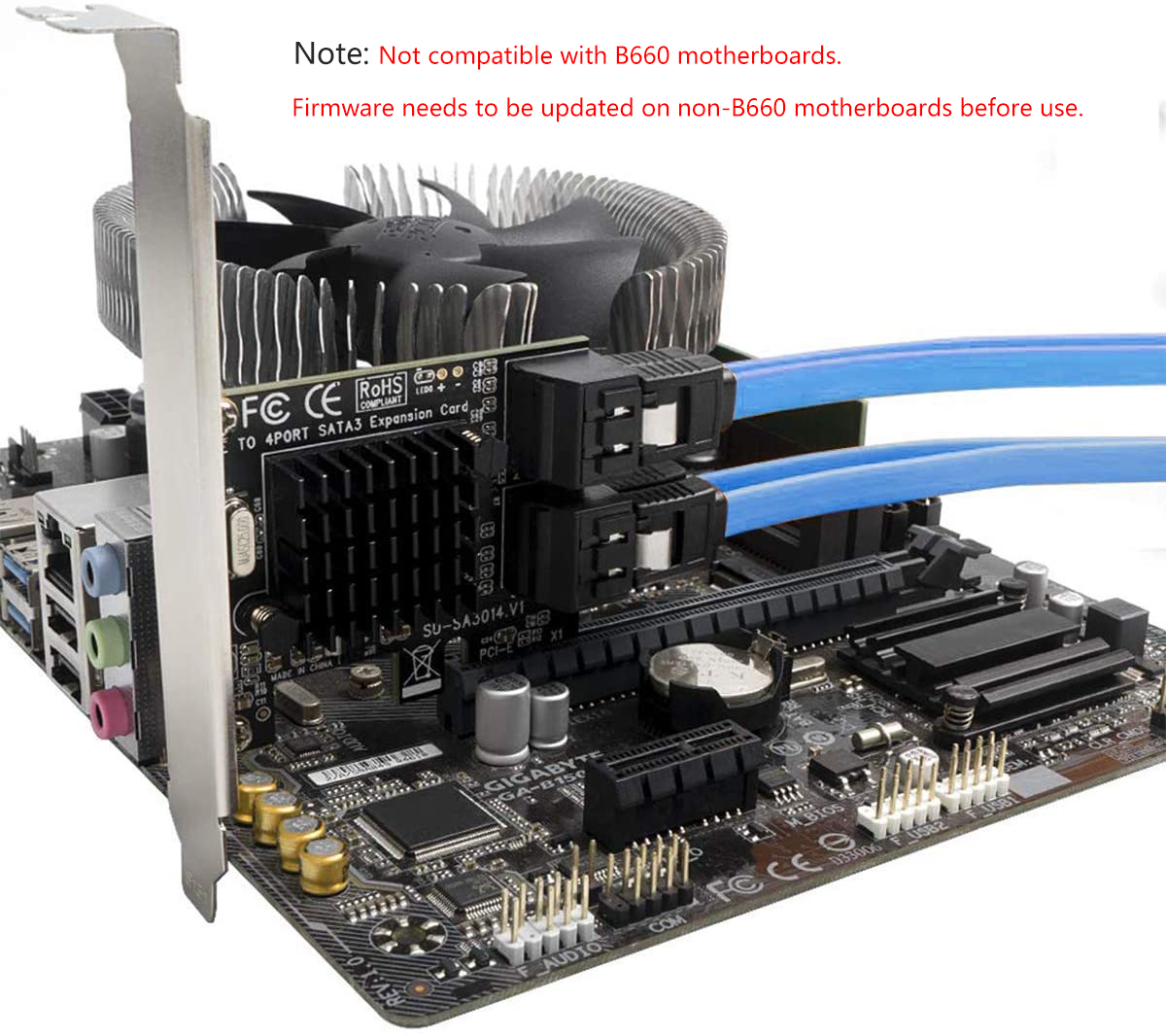

  • It is not compatible with B660 motherboards. It can only be used after updating the firmware on non-B660 motherboards.
  • It is forbidden to install in the PCI slot

System Requirements

  • Applicable Slots: PCI-Express X1, can be used on PCIe X2 X4 X8 X16 slot
  • System: Support for Windows XP / 7 / 8 / 10(32/64 bit) /VISTA / MAC / NAS / Linux

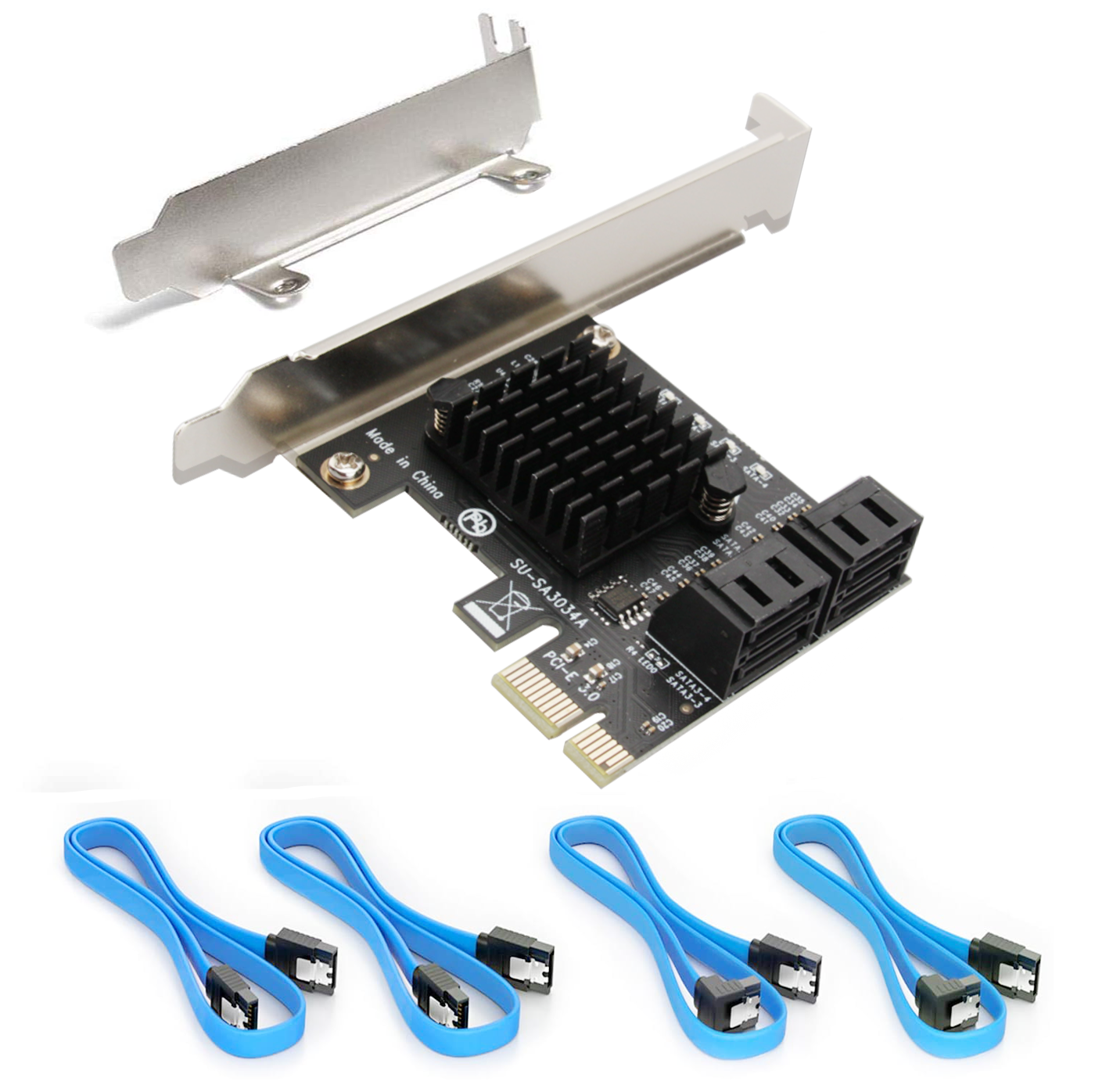

Package Contents

  • 1 x PCIe X1 to 4 SATA 3.0 controller card

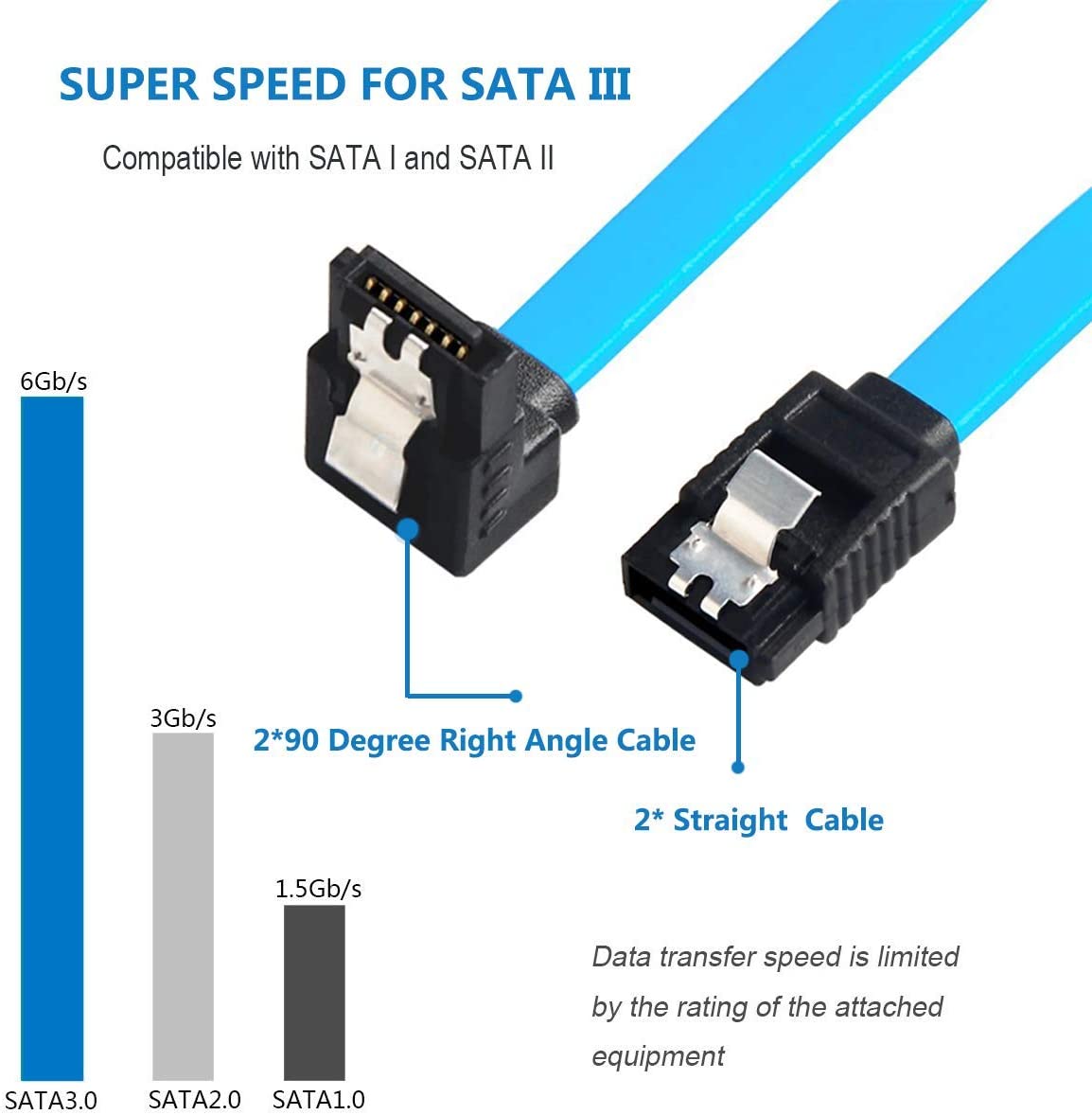

  • 4 x SATA Cable(40cm/15.8in)
  • 1 x Low-profile bracket
  • 1 x Screwdriver
  • 2 x Screw kit
  • 1 x Anti-static bag
