Gigabit Wi-Fi --- ZYT-7265 with Intel Wireless-ac 7265 is the first Intel Wi-Fi module that provides Gigabit Wi-Fi speeds.When using 160MHz channels, it can deliver up to 867Gbps maximum theoretical throughput, nearly 6x faster than baseline 1x1 BGN (150Mbps) Wi-Fi used in today’s PCs. Built for high-performance computing, such as online gaming and 4K Ultra HD video streaming.
Bluetooth 4.2 --- Dual mode Bluetooth 4.2 enables Basic Rate/Enhanced Data Rate (BR/EDR)-low energy devices to act as a hub and peripheral at the same time. Connects to the newest low energy Bluetooth products as well as your familiar devices, such as headsets, keyboard, mice, and more.

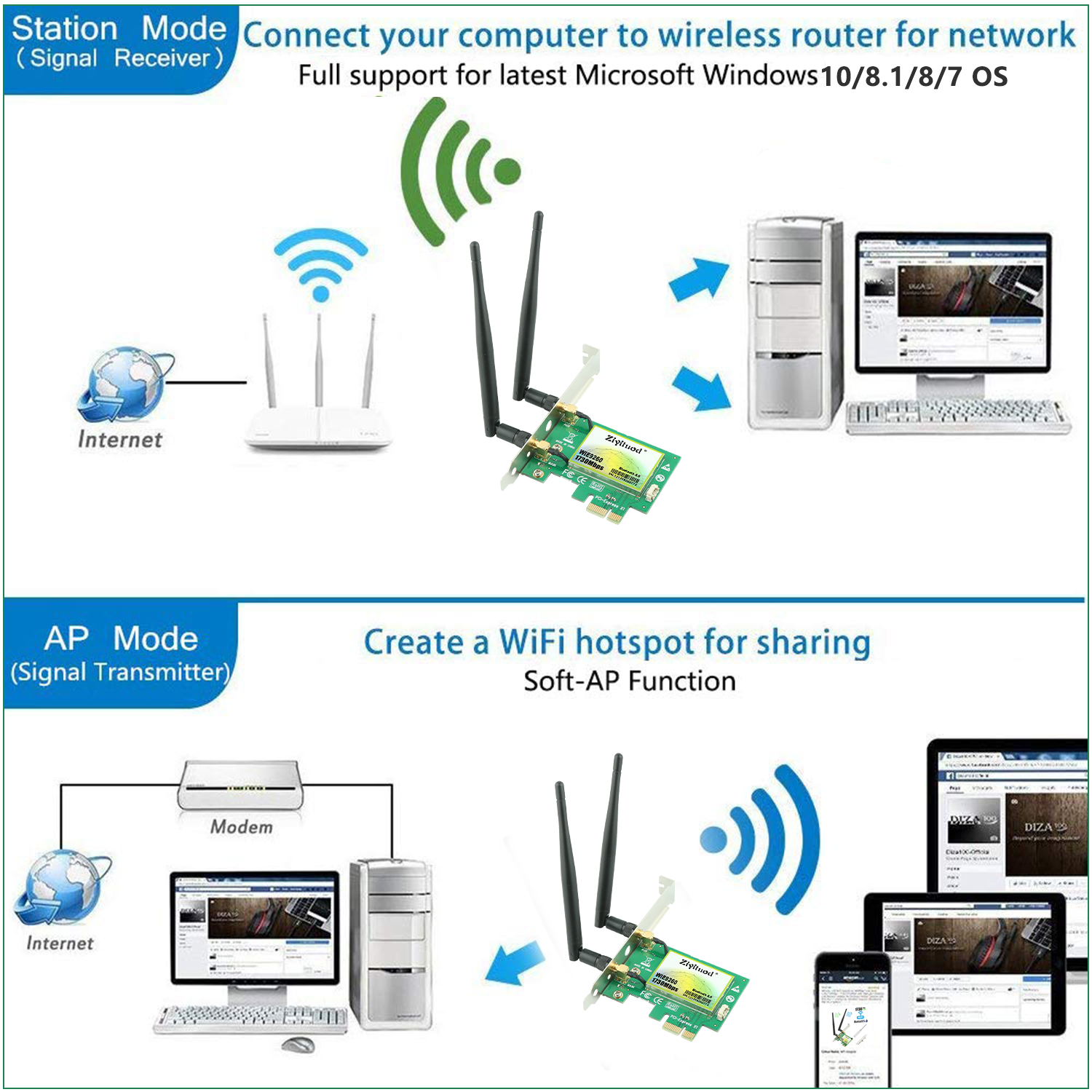

AP Function + WiFi Receive --- Build a wireless hot spot enable your mobile phone, tablet, and other digital devices to access the wireless network.

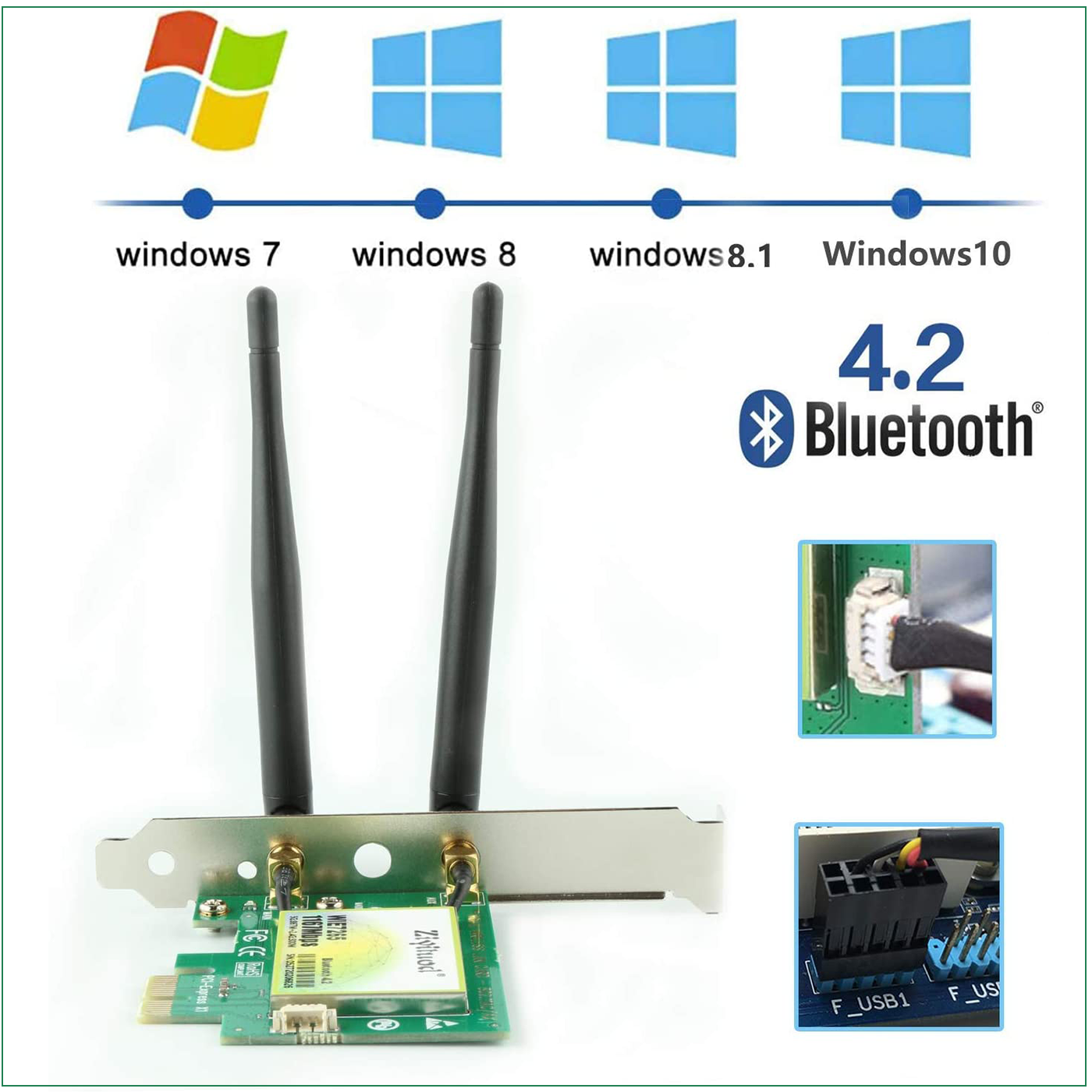

Compatibility --- Support Windows 10/ 8.1/ 8/ 7 32 64bit.Works with PCI Express X1,X4,X8,X16 slot.Low profile bracket inside make sure it able to work on mini size and standard PCs.
Linux OS Support --- E.g. Ubuntu,Please download the corresponding firmware on Intel's website.
Link: https://www.intel.com/content/www/us/en/support/articles/000005511/network-and-i-o/wireless.html
To install firmware:
1.Copy the files into the distribution-specific firmware directory, /lib/firmware.
2.If the directory doesn't work, refer to your distribution documentation.
3.If you configure the kernel yourself, make sure firmware loading is enabled.
Support ---- 30 days money back guarantee,worry-free 12 month warranty and 24/7 technical support. Get Support Email:ziyituod@evisionde.com
Trouble Shooting and Solution:
1. Why this card can’t connect to 5G or PCs can’t find 5G the signal on my PC?
PCs find 5GHz signal but can’t connect: ①. Connect to 2.4G first, make sure it is connected .②. Find your 5G signal and connect, most of them will work. PCs cannot find my 5G signal but 2.4G works: ①.Connect 2.4G signal first. ②. Restart PC or re-plug this Wireless card. Or in Device Manager-Remove this card and install the driver again for it. Then PCs will find 5GHz and will allow PCs to connect.
2. Why my PCs always get poor signal or drops sometimes?
A. Test Wi-Fi signal in PC area(same spot, same height) by cell phone check if PC was placed in a Wi-Fi dead zone if yes, please change location for PCs. B. If the distance little long PCs will get poor signal or only 2.4G signal. To improve this please considers change the PCs or Wireless AP’s location. Or you can buy a more power Wi-Fi Antenna for it.
3. Why my PC find 2.4G signal only?
PCs was placed too far away from Router.5GH band will support more data speed by covers a small area. Wireless AP or Router’s signal may cannot reach PCs location. Considers decrease the distance between Router and PC.
4. I am a Linux user how can I get source code to compile my PC?
Go to open the mini CD in the package find ATH9K links get source code online. Or go to our site download ATH9K driver.
5. Windows10,8.1,8 system cannot load this card automatically how to fix this ?
Just need to install the drivers in mini-CD, the device will works properly. If do not have CD ROM, please go to our site download drivers for the models in your hand.
6. My PCs find few signals only, not as expected performance,
how to fix this?
Please remove Wi-Fi card from PCs and install it again.At the same time please screw Wi-Fi antenna and make sure it is screwed correctly. Most of the time it is Wi-Fi antenna wasn’t screwed properly.
7.There a PCIE X16 port only,is it working on this ?

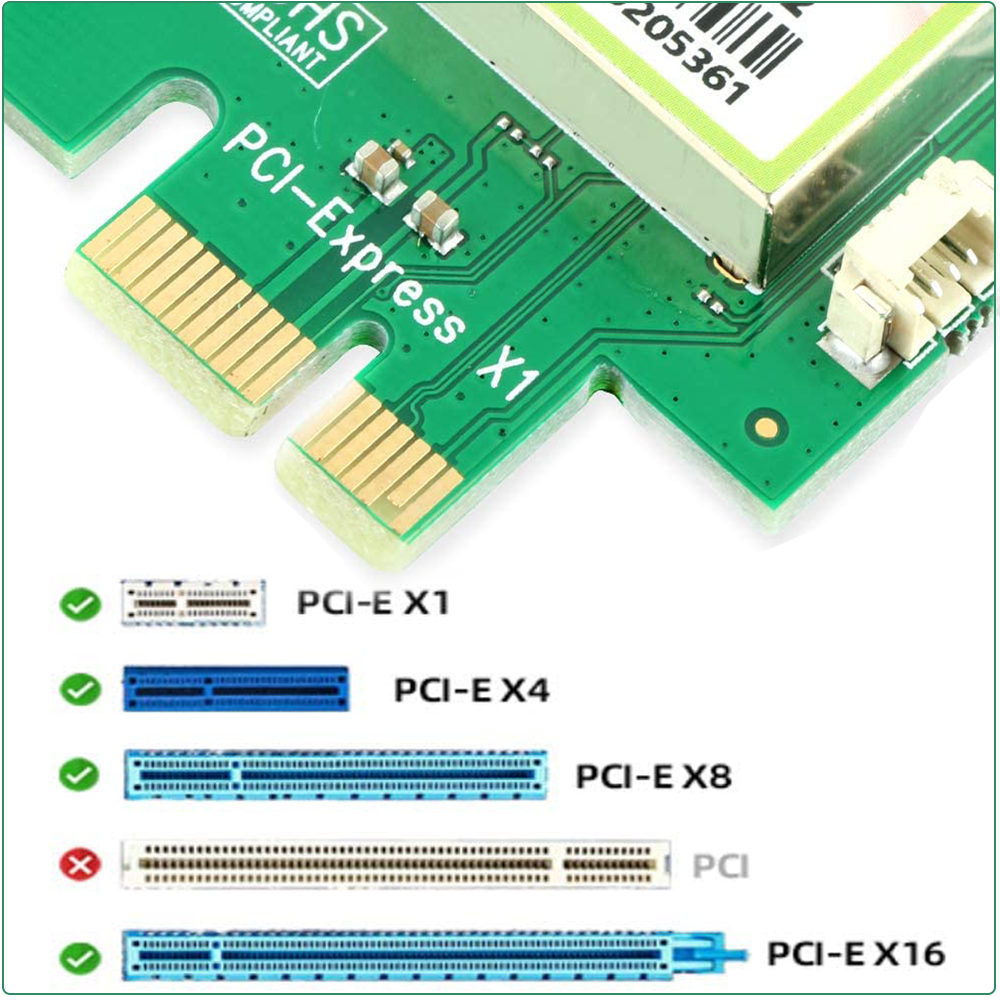

Absolutely YES,Works on PCIE X1, X4, X8, X16 slot
8.Where I can find support from Ziyituod?
Get prompt tech-support:http://www.ziyituod.net/ or Contact us after-sales Email:ziyituod@evisionde.com
